Case Study

Medical Device HL7 EHR Integration Platform

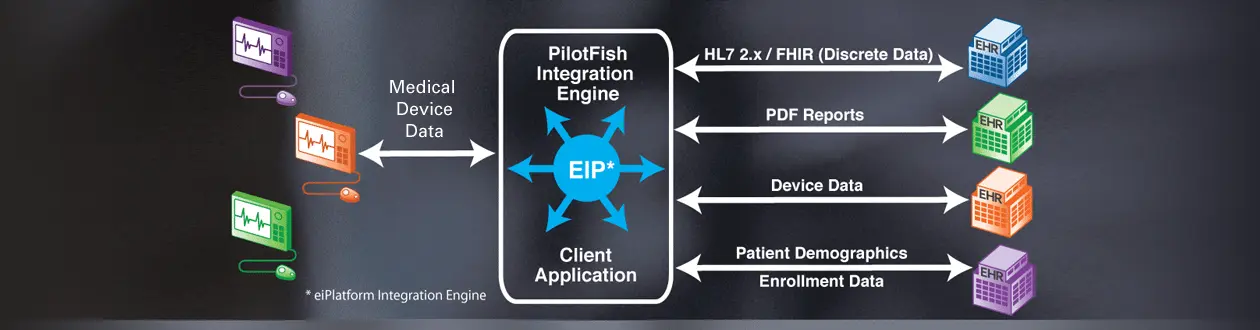

Case study illustration for medical device hl7 ehr integration platform using PilotFish.

Enabling Real-Time Clinical Device Data Exchange Across Hospital Systems

Snapshot

Enabling Real-Time Clinical Device Data Exchange Across Hospital Systems

Client Profile

A leading medical device manufacturer supporting hospitals and health systems with advanced bedside monitoring and diagnostic equipment.

Integration Challenge

Securely and reliably transmitting HL7 device data into multiple EHR systems while accommodating hospital-specific requirements, validation rules and workflow variations.

PilotFish Solution

Deployment of the PilotFish eiPlatform to normalize, validate and orchestrate HL7 device messages across diverse EHR environments, reducing custom development and accelerating hospital onboarding.

Key Outcomes

  • Real-time, bidirectional HL7 integration with multiple EHR platforms
  • Accelerated onboarding of new hospital clients
  • Improved data accuracy and validation reliability
  • Reusable integration framework supporting future device expansion

Overview

For medical device manufacturers, delivering clinical data to hospital EHR systems is often as challenging as developing the devices themselves. Each hospital may require different HL7 message structures, validation rules and integration workflows.

This organization had developed sophisticated monitoring and diagnostic devices that captured high-value clinical data in real time. However, each hospital environment presented a new interoperability hurdle. HL7 versions varied. Interface engines differed. Validation rules were inconsistent. And no two EHR workflows were exactly alike.

As hospital deployments increased, maintaining separate custom interfaces became increasingly difficult. They needed a flexible, extensible integration architecture that could scale with customer demand while preserving reliability and regulatory compliance.

After evaluating alternatives, they selected PilotFish to provide a long-term interoperability foundation rather than another set of point-to-point connections.

The Background

Managing HL7 Variations Across Hospital Systems

Medical devices generate clinical data used in patient monitoring and treatment decisions. Effective medical device data integration enables vital signs, diagnostic readings and procedural metrics to reach hospital systems securely and in near real time.

But hospitals operate heterogeneous environments:

  • Different EHR platforms
  • Varying HL7 versions and custom Z-segments
  • Unique validation and acknowledgment requirements
  • Distinct security and network constraints

The device manufacturer’s implementation team repeatedly built custom HL7 interfaces for each hospital deployment. Each new customer introduced subtle variations that required additional scripting, testing and maintenance.

While technically feasible, the approach was not sustainable.

The organization needed a unified integration strategy that would allow them to:

  • Standardize inbound and outbound HL7 processing
  • Validate and normalize device data before EHR ingestion
  • Rapidly adapt to hospital-specific message variations
  • Support future device models without starting from scratch

The Integration Challenge

Several critical requirements emerged:

  • Bidirectional HL7 messaging between devices and EHR systems
  • Real-time data delivery with reliable acknowledgments
  • Flexible handling of ADT, ORM, ORU and custom device message types
  • Configurable validation rules to meet hospital-specific constraints
  • Strong security and HIPAA compliance
  • Scalable architecture capable of supporting rapid customer growth

These requirements called for an HL7 interface engine capable of processing standard and customized messages while supporting hospital-specific validation and acknowledgment requirements.

Most importantly, the solution needed to reduce dependency on fragile custom code. The manufacturer wanted control, visibility and long-term maintainability.

The PilotFish Solution

A Flexible Integration Architecture Built for Change

From the first technical workshop, the PilotFish team approached the engagement as a collaborative partnership.

Rather than immediately mapping messages, PilotFish architects met with the device engineering and implementation teams to understand:

  • How device data was structured internally
  • Where variations typically occurred
  • Which integration points caused recurring delays
  • How hospital onboarding workflows operated

This consultative discovery phase allowed PilotFish to design a reusable integration framework instead of individual interfaces.

Core Capabilities Deployed

The eiPlatform integration engine was deployed to execute and manage the hospital integration workflows. The solution included:

  • Graphical HL7 message modeling and transformation
  • Drag & drop data mapping with reusable components
  • Automated acknowledgment handling
  • Configurable validation and business rule enforcement
  • Process orchestration and scheduling
  • Centralized monitoring and error visibility

PilotFish also provides integration monitoring and error management through eiDashboard, allowing teams to monitor message processing and investigate failures.

Using the graphical Data Mapper in the PilotFish eiConsole, the team developed reusable XSLT transformations to map between:

  • Device-native data formats
  • Standard HL7 structures
  • Hospital-specific HL7 variations
  • Internal canonical data models

In effect, the solution supported transforming any format into any required format without heavy scripting.

Engagement Approach

Standardizing Device Data for Multiple Hospitals

Instead of creating isolated interfaces for each hospital, PilotFish helped the client establish a canonical device data model.

Step 1: Normalize Device Output

All device-generated data was first transformed into a common internal format. This insulated the manufacturer from downstream variability.

Step 2: Configure Hospital-Specific Output Profiles

For each hospital, configurable mapping layers were applied to generate the precise HL7 structure required, including custom segments, field constraints and acknowledgment logic.

Step 3: Validate Before Delivery

Incoming and outgoing messages were validated against structural and business rules prior to transmission, reducing downstream rejection rates and support escalations.

Because components were reusable, onboarding new hospitals became dramatically faster. The integration team no longer started from zero.

Implementation Experience

Partnership in Practice

What distinguished this project was not just technology but also collaboration.

PilotFish assigned a senior integration architect to work side by side with the manufacturer’s implementation team. The team conducted early deployments jointly, embedding knowledge transfer into each milestone.

When the first hospital introduced unexpected HL7 variations late in testing, the PilotFish team quickly adjusted mappings and validation rules without rewriting the entire interface.

This responsiveness built confidence. Over time, the manufacturer’s internal engineers became proficient in maintaining and extending integrations independently.

The learning curve was short. The graphical environment reduced complexity. And performance was validated under real-world hospital load conditions.

The Benefits

Speed, Accuracy and Strategic Flexibility

The results extended beyond technical integration.

Operational Gains

  • Reduced custom coding across hospital deployments
  • Faster onboarding of new customers
  • Lower support ticket volume due to improved validation
  • Increased reliability of real-time clinical data exchange

Technical Advantages

  • Reusable interface components
  • Clear visibility into message flow and errors
  • Simplified management of HL7 variations
  • Scalable architecture for future device models

Executive-Level Impact

Leadership gained confidence that integration would no longer be a bottleneck to growth. Sales teams could commit to aggressive implementation timelines. Engineering resources could focus on product innovation rather than repetitive interface work.

Long-Term Strategic Impact

Perhaps the most important outcome was architectural independence.

Instead of building fragile, hospital-specific interfaces, the organization now operates a unified integration framework capable of adapting to:

  • New EHR platforms
  • Updated HL7 standards
  • Expanded device product lines
  • API and FHIR-based interoperability initiatives

With PilotFish in place, integration is no longer reactive. It is strategic.  The manufacturer can now adapt its integration framework to support additional hospital systems, device models and evolving HL7 requirements.

What began as a challenge to connect medical devices to EHR systems evolved into a scalable interoperability foundation, one that supports innovation, accelerates deployments and strengthens hospital partnerships.

For another example of connecting medical equipment to hospital systems, read our medical equipment HL7 integration case study

Since 2001, PilotFish’s sophisticated architecture and innovations have radically simplified how healthcare integration gets done. Today PilotFish offers the most flexibility and broadest support for healthcare integration of any product on the market and is system, platform and database agnostic. PilotFish’s healthcare integration suite includes support for all healthcare data formats (HL7 2.x, HL7 3.x, FHIR, CCD/CCDA, JSON, XML, X12 EDI, NCPDP, etc.) and communication protocols.



PilotFish is architected to be infinitely extensible with our Open API and flexible to meet any integration requirement. PilotFish distributes Product Licenses and delivers services directly to end users, solution providers and Value-Added Resellers. To learn more, visit our Case Studies or specific solutions like HL7 Integration or X12 EDI Integration.



PilotFish Healthcare Integration will reduce your upfront investment, deliver more value and generate a higher ROI. Give us a call at 813 864 8662 or click the button.
