Case Study – Medical Equipment Integration

Medical Equipment Integration Case Study

Medical Equipment EHR Integration Solution

The healthcare division of one of the world’s leading manufacturers delivers new out-of-the-box interoperability capability. Partnering with PilotFish, a single consistent integration approach across product lines was achieved to support a growing client base of globally-dispersed automated medication management environments.


The client is the healthcare division of a $30B company and the world’s leading manufacturer/supplier of storage and transport products. The division provides medication management solutions and automated medication dispensing carts and cabinets to hospitals and other healthcare facilities worldwide.


The client offers a product solution suite to a geographically and demographically disparate set of Healthcare providers, including international hospitals with thousands of beds. Each of these products has historically been managed and implemented independently of the others – with little consistency in approach or technology platform.

The strategic direction of the company’s medication storage and management products necessitated offering a single-source, end-to-end workflow. In addition, the ability to place best-of-breed components into a provider’s automated medication management environment that may also contain competitive offerings was required. With respect to integration, this required the flexibility to communicate not only with EMR, pharmacy and billing systems but also with other equipment and applications that may already be in place (POC, ADM, smart shelving, etc.).

The client had previously implemented a number of different HL7 integration solutions, notably including the open source HL7 Interface engine and another leading commercial interface engine. As the organization moved forward to standardize on a single approach across their product lines, each of these previously licensed technologies graded out as suboptimal. The open-source product quickly became cost prohibitive for large-scale, commercial deployment. The other’s offerings were approaching end-of-life and lacked the demonstrated flexibility to keep up with a host of new customer demands.

The client required a new interface engine solution that could support the integration requirements of all of their products – in any provider environment, and in any part of the world. They were in search of a solution that was lightweight enough for deployment alongside any piece of equipment. The offering would also need to be flexible enough to handle a wide range of data formats including any flavor of HL7, IHE profiles, DICOM, XML, relational databases and anything else that their implementation teams may encounter. Along with traditional TCP/IP (HL7 LLP) messaging, the tool would also be required to support SSL, FTP, SFTP, and file-based transmissions.

Implementation and ease of deployment was also a daunting challenge. Due to their size and geographic breadth, implementation teams for the client’s products span the globe. Remote access to provider IT infrastructure is often limited, if available at all. On-site travel is expensive and time-consuming. In response to these conditions, the selected interface engine would need to be exceedingly simple to install, manage and configure.

In summary, the future of the organization demanded an integration framework that could be readily incorporated into its many platforms. This framework had to enable communication between their own systems, third-party products, and any other provider IT asset for which intercommunication is essential for patient safety, product effectiveness and optimal workflow. At the same time, the solution would need to offer commercial terms and deployment models compatible with a global manufacturer of medical equipment and provider of medication management solutions.


After an extensive request for proposal (RFP) process and vendor proofs-of-concept, the client selected the PilotFish eiConsole and eiPlatform interface engine solution to become the single standard for addressing its integration requirements.

PilotFish, unlike many competing offerings, has focused on architecting both the company’s software and creating a business model to meet the needs of medical device and equipment manufacturers and solution providers. Working in partnership with client stakeholders, PilotFish was able to offer the client per-deployment licensing that was in full alignment with the client’s own financial model. The negotiated agreement allows the client to deploy the software internationally, with the commercial benefit to both organizations growing as value is delivered to the end client.

PilotFish collaborated with the client’s technical team to deliver an eiPlatform “bundle” – a simple executable installer that includes everything needed to make the client’s equipment instantly “interoperably capable.” The client is unencumbered by additional software requirements or deployment complexity that could otherwise act as overweight baggage to distribution. Nonetheless, the bundled integration solution includes the full core interface engine functionality of the PilotFish eiPlatform.

The client found PilotFish software to be among the most robust of modern solutions in the marketplace, the impressive result of having been continuously evolved over the course of a decade of real-life implementations. The eiPlatform is the server software at the heart of PilotFish’s best-of-breed integration software, built with the sole purpose of facilitating the interoperability of systems, trading partners, equipment and devices regardless of technology platform, standards compliance, communications protocols or data formats. The bundled solution also includes a set of “out-of-the-box” HL7 interfaces pre-configured using the PilotFish eiConsole for Healthcare development environment. The typical integration use case includes the electronic receipt of a medication order, an association of a patient record and drawer to that order and tracking the dispensing of that medication. The eiConsole allows the client to graphically configure – rather than code – these interfaces into and out of any of their medical equipment.

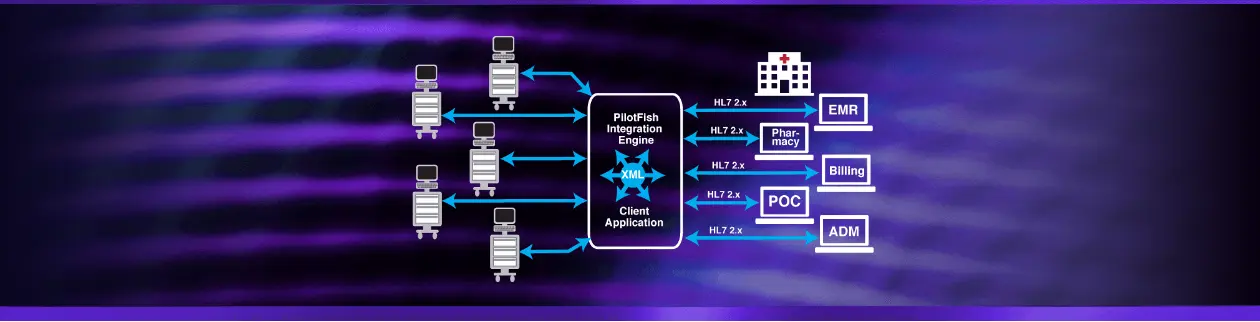

As the client’s various products expose new data or capabilities, one or more interfaces to interact with or provide access to these are configured. On one side of these interfaces sit relevant standards, such as HL7 2.x messaging or IHE profiles. On the other side, these standard messages are graphically mapped onto the proprietary format most readily consumable by the particular device. In many but not all cases, the client’s interfaces map HL7 2.x messages to and from a proprietary SQL-based data store.

The combination of the eiPlatform engine and the bundled interfaces allows the client to produce generic forms of the outbound messages to support typical EMR and eMAR (electronic medication administration record) interfaces, as well as to expose the IHE medication management workflow. These interfaces also support the requirement to provide on-demand HL7 or XML representations of specific patient information or data related to a medication event.

The bundled interfaces provide the client with a solid jumping-off point to address most provider integration scenarios. Yet each implementation and environment also has its own nuances that must be addressed. Great value is achieved through the PilotFish solution’s ability to flexibly and rapidly adapt these bundled interfaces to the requirements of a given client deployment. It’s also easy to build entirely new interfaces on the fly to address unique challenges, a particular distinct advantage and value for service staff in the field.

In just a few days, PilotFish personnel trained a handful of client staff on the eiConsole for Healthcare product. PilotFish also developed a web-based online resource knowledge center customized to the client’s product usage profile. The combination of a short training period, robust and relevant materials and the repeatable automated interface assembly line inherent to the product allowed the client to rapidly get up to speed to support customer implementations with virtually no PilotFish support.


The client has realized the benefits of identifying a single integrated approach to support their worldwide operations. They have also gained a solution that is flexible and future-proof. Each of the core components of the automated interface assembly line is configurable, pluggable and extensible. This has provided a consistent approach that can be evolved to meet the changing needs of the international market. By loosely coupling the interoperability API (e.g., HL7 or IHE messaging protocol specifics) with its equipment, changes to evolving standards require only configuration changes in the middleware layer – leaving the core system logic unaltered. Existing system deployments can be updated to support newer versions of the standards through the deployment of updated file- based configurations.

The PilotFish interface engine has proven itself to be intuitive, easy-to-use and easy-to-learn. Service personnel find implementations painless and are able to smoothly and quickly integrate equipment with hospital client systems. As an organization with a truly international distribution of its products, our client’s solutions must work out-of-the-box, with extremely limited customization, configuration and on-premise support requirements. The client has now developed a single interface that they have dubbed their “Gold Standard.” Most new hospital clients are now implemented without making any modifications to this interface. This flexible default option, coupled with a capability to remotely support all software configurations, allows our client to implement new customers in an average of under four hours. Working collaboratively with PilotFish, our client has delivered a winning solution that removes a previous bottleneck to rapid, global adoption of their best-of-breed product offering.


Flexibility and extensibility are architected into PilotFish solutions to quickly add support for new standards or data formats. As the international adoption of the new HL7 FHIR (Fast Health Interoperability Resource Framework) standard takes hold, the client can benefit from PilotFish’s newly implemented support for FHIR.

PilotFish support for the new FHIR standard includes a FHIR Format Reader with support for Profiles and full support of the specification in the product’s Data Mapper, including the metadata. Support for a number of core technologies that FHIR users will benefit from, such as Web Standards like JSON, HTTP, etc. and RESTful architecture, has also already been implemented. By leveraging PilotFish’s FHIR support, the client will instantly be interoperable with customers with FHIR-compliant EHRs.

As the client builds up an international services team to support worldwide operations, they will be able to utilize the PilotFish “Train the Trainer” Program. The modular component design of the product has proven well suited for creating customized training materials. By selecting modules related to a client’s use case, PilotFish is able to create a customized Training Program and Online Resource Center for each client to suit specific skill level and service requirements. The client can leverage this to easily self-support its implementations and train the international services team as their market share rapidly grows.

Since 2001, PilotFish’s sophisticated architecture and innovations have radically simplified how healthcare integration gets done. Today PilotFish offers the most flexibility and broadest support for healthcare integration of any product on the market and is system, platform and database agnostic. PilotFish’s healthcare integration suite includes support for all healthcare data formats (HL7 2.x, HL7 3.x, FHIR, CCD/CCDA, JSON, XML, X12 EDI, NCPDP, etc.) and communication protocols.

PilotFish is architected to be infinitely extensible with our Open API and flexible to meet any integration requirement. PilotFish distributes Product Licenses and delivers services directly to end users, solution providers and Value-Added Resellers. To learn more, visit our Case Studies or specific solutions like HL7 Integration or X12 EDI Integration.

PilotFish Healthcare Integration will reduce your upfront investment, deliver more value and generate a higher ROI. Give us a call at 813 864 8662 or click the button.
